Ground Mounted Solar Panels for Farm And Agriculture

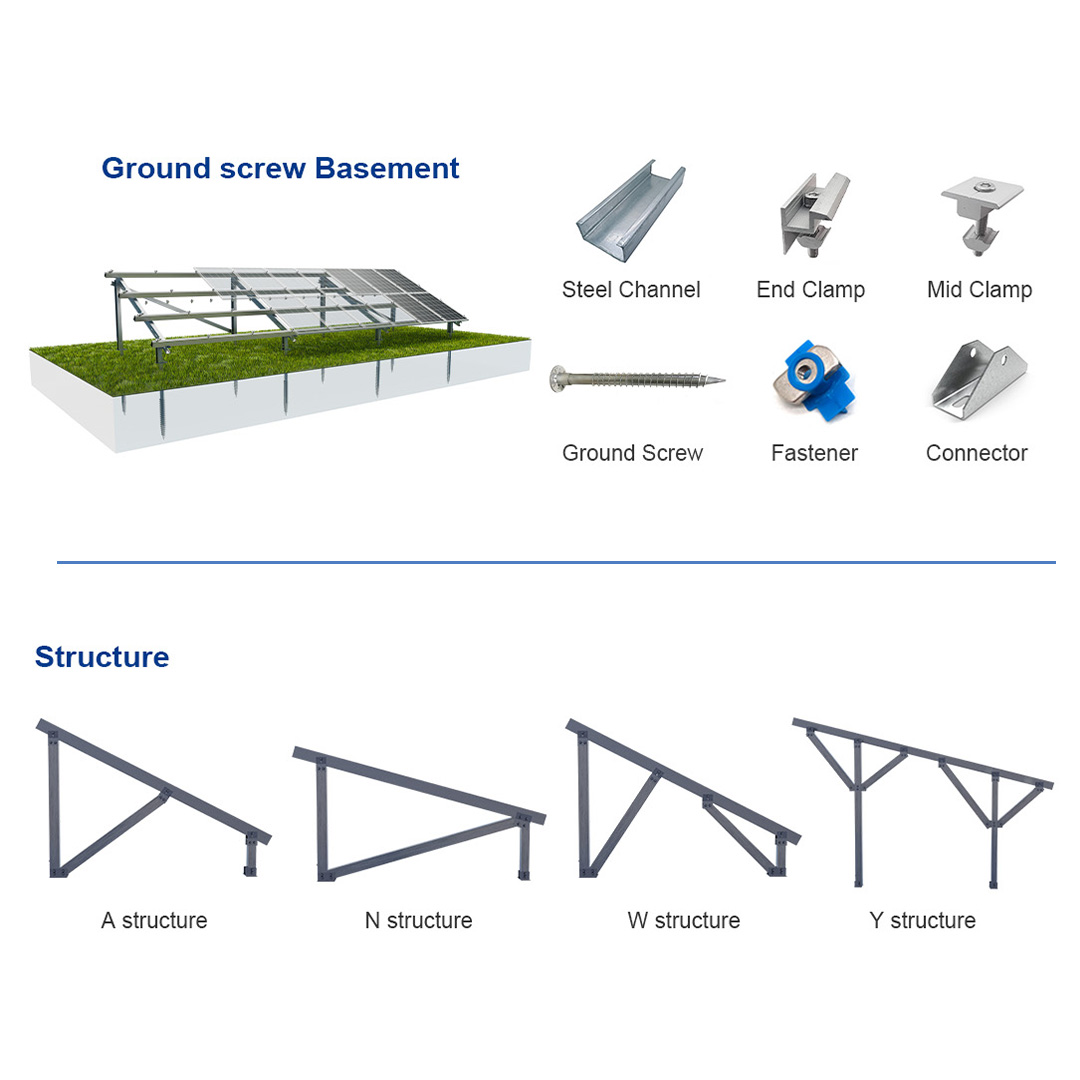

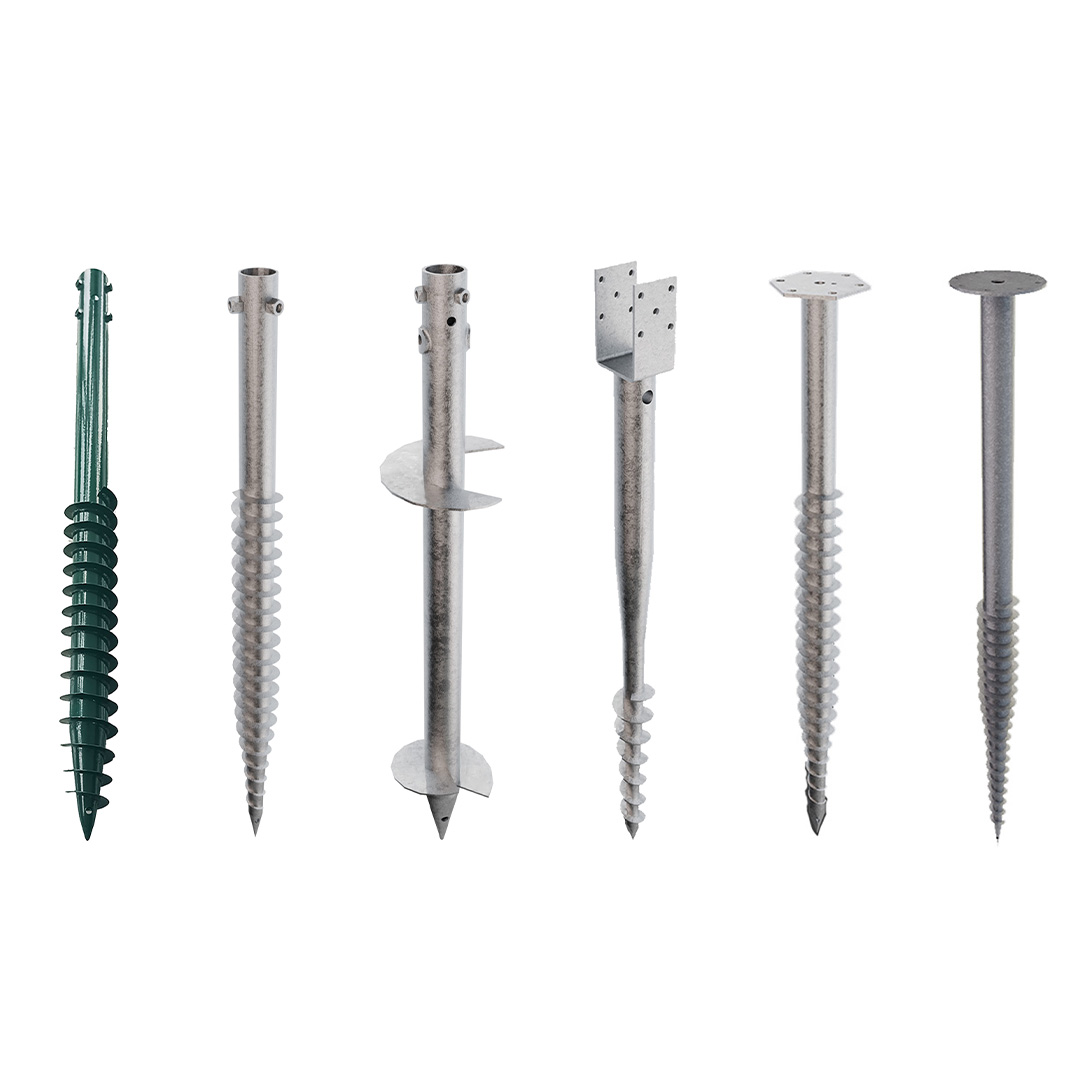

Solar ground mounting system is a bracket structure for installing solar panels, which is widely used in ground power stations. This support system usually consists of ground screw and fixed frames. It can be flexibly arranged and adjusted according to the characteristics of the ground to improve the absorption efficiency of solar energy. The advantages of solar ground support systems include easy installation, flexible adjustment, strong carrying capacity and low impact on the ground environment. In addition, the solar ground support system also has the advantage of easy maintenance and management, which can improve the operating efficiency of the solar power station.

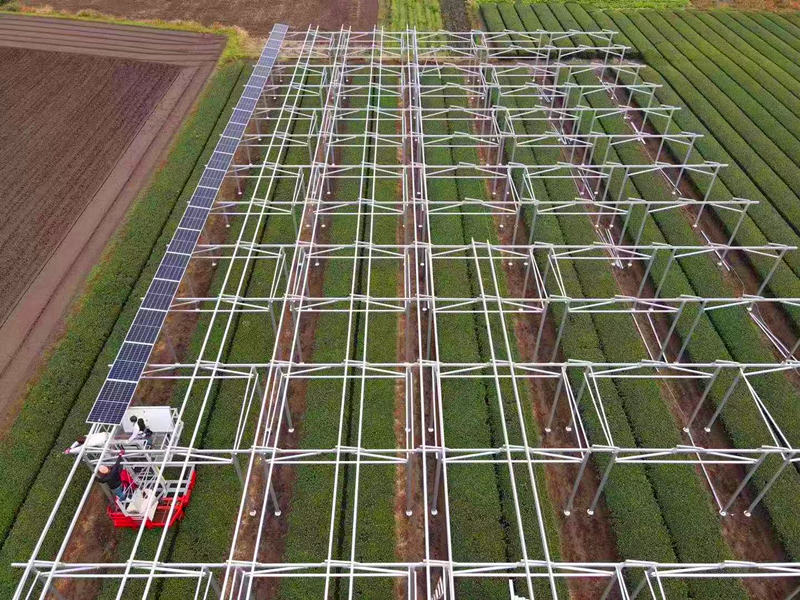

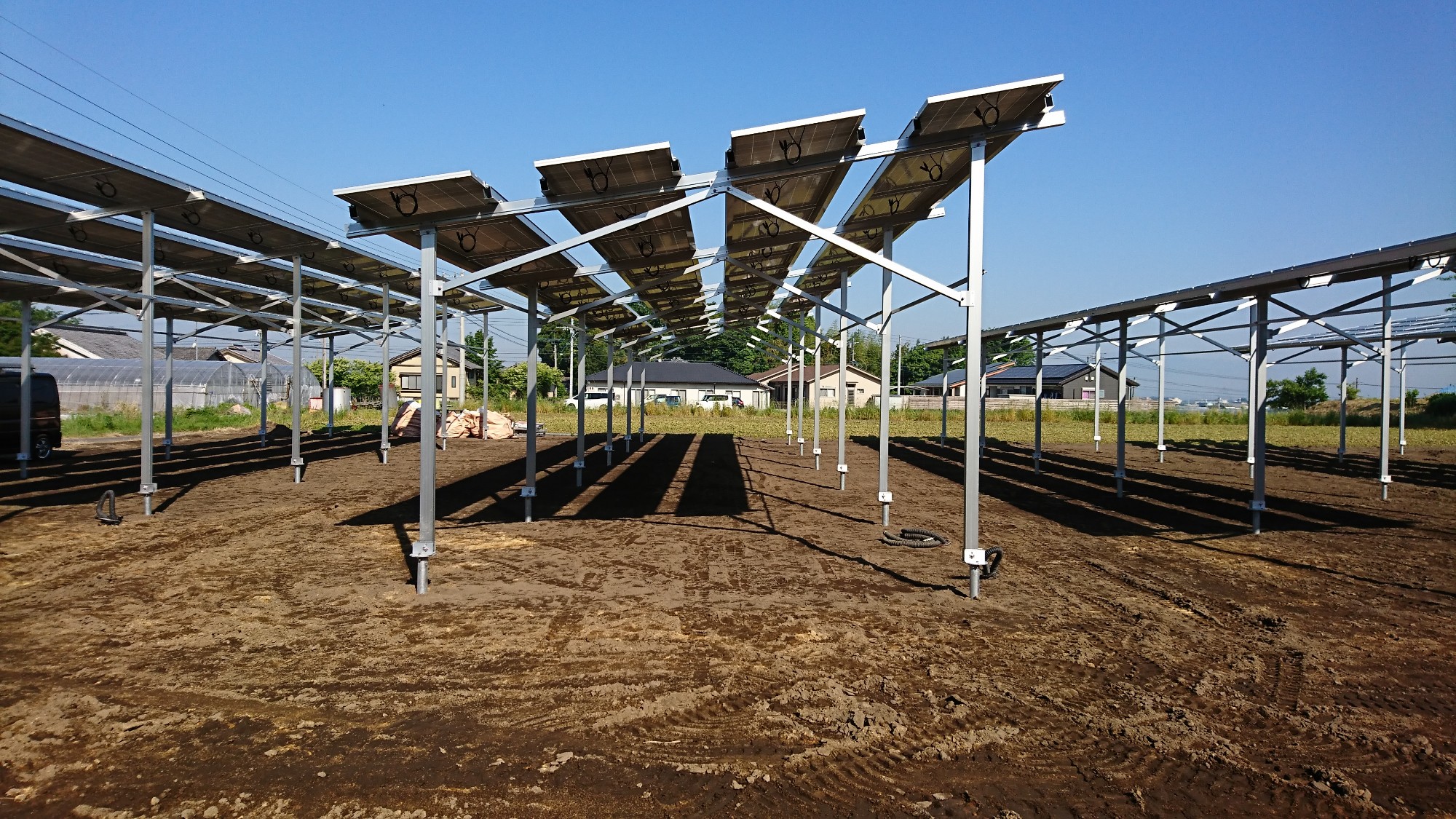

Solar farm system is a device used to install solar panels on agricultural buildings. It is usually made of metal and can be customized in different shapes and sizes to accommodate different types and sizes of solar panels. The design of our solar brackets has many advantages, such as strong load-bearing capacity, strong wind resistance and aesthetics, etc., with reliability and practicality.
Technical Parameters | |||
System Name | Solar farm mounting system | Design Standard | AS/NZS 1170、DIN 1055、JIS C8955:2017 |
Installation Site | Farmland | International Building Code:IBC 2009 | |
Tilt Angle | 0-60° | California Building Code:CBC 2010 | |
Wind Load | 60m/s | Hook Material | SUS304 |
Snow Load | 1.6KN/㎡ | Fastener | SUS304 |
Applicable Solar Module | Framed or Frameless | Small Components | AL6005-T5(Anodized) |
Panel Layout | Portrait or Landscap | Warranty | 10-year warranty |
